Available display layouts

The available HS 50 display layouts in the demo kit contain fields and buttons. A field consist of a header and a data part. A layout is available with and without a status bar that shows if the device is connected, as well as the status of the battery. When a button is pressed, the caption text is received by Velocity. The available layouts are:

• One field
• Two fields

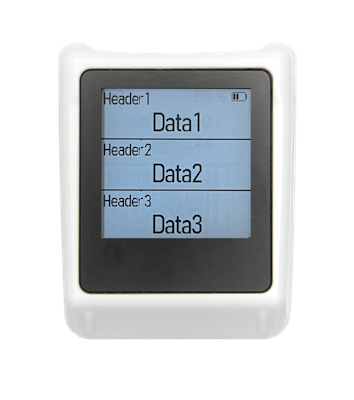

• Three fields

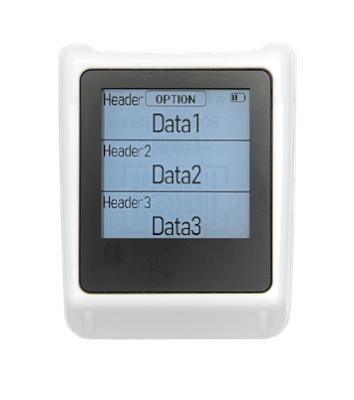

• Three fields, with enter button

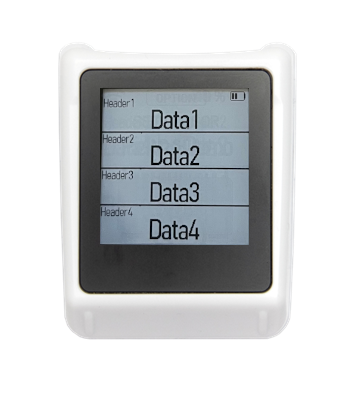

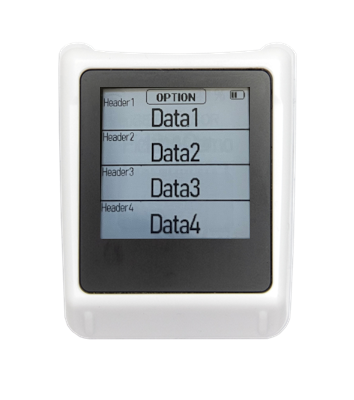

• Four fields
• Six fields
• One button

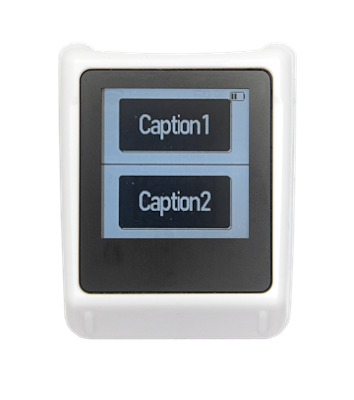

• Two buttons

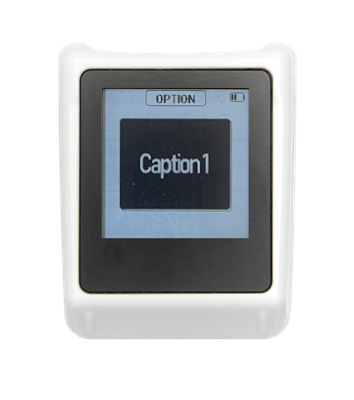

• One field, one button

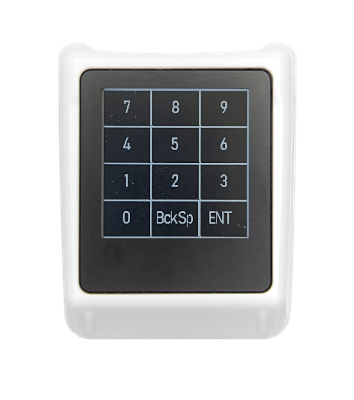

• NumPad
• Function Keys

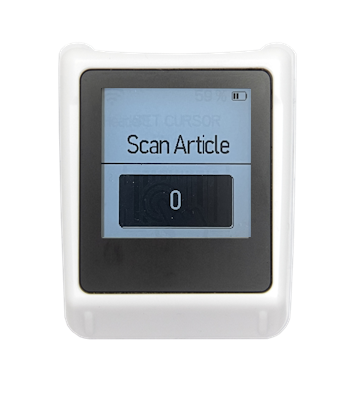

• Scan Counter

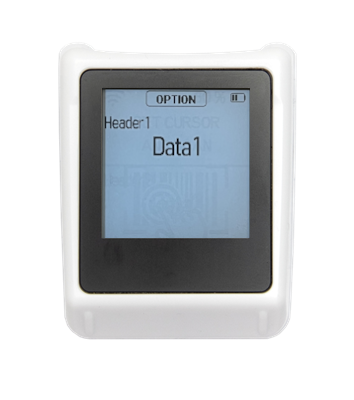

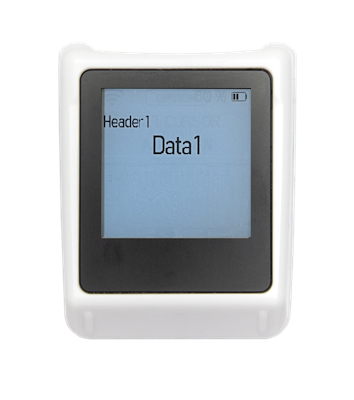

One field

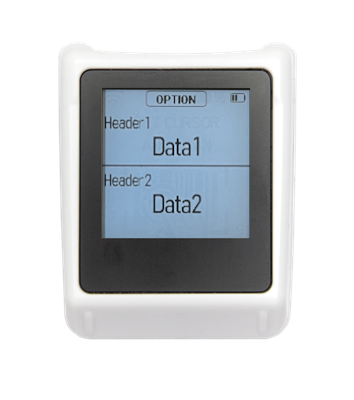

Two fields

Three fields

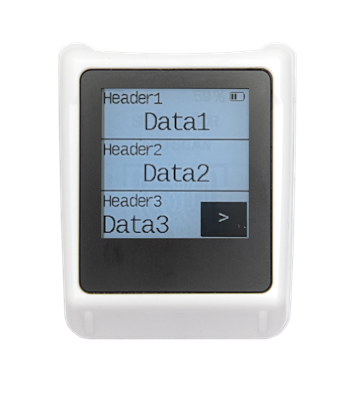

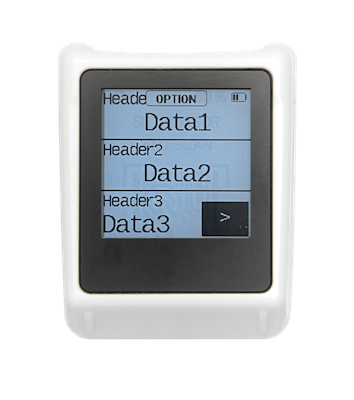

Three fields, with enter button

Four fields

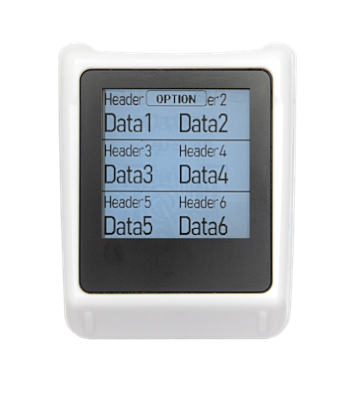

Six fields

One button

Two buttons

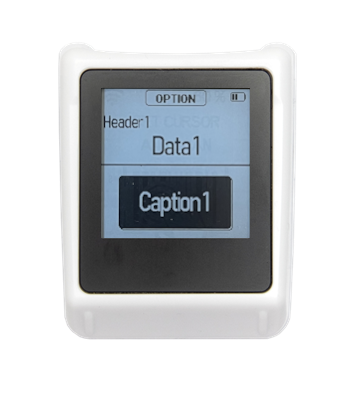

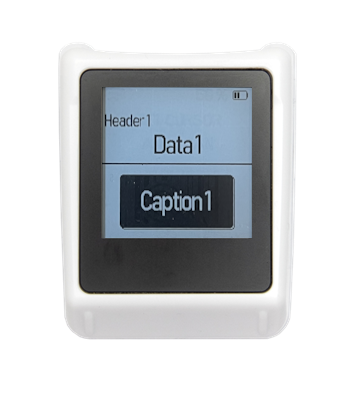

One field, one button

NumPad

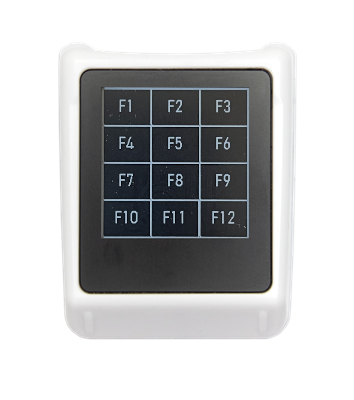

Function Keys

Scan Counter
